TORP TC 1000 2.X Controller Talaria MX3 / MX4 / Sting R

TORP TC 1000 2.X Controller Talaria MX3 / MX4 / Sting R

TORP TC1000 2.X controller kit for Talaria MX3 / MX4 / Sting R. FOC, 700 A battery / 1000 A phase, works with the stock display. 8 kW (MX3) / 11.5 kW (MX4) on the stock battery, up to 20 kW with a 72–80 V pack. IP67, 2-year warranty.

USD1,311.20

incl. VAT / 1pcs

Lowest price in 30 days before discount: / pcs

Regular price: / pcs

Cena sugerowana:

You can buy for pts.

Notify about availability

Contact the shop staff, in order to estimate time of preparing this product for shipment.

Shipment

Cheap and fast delivery

14 days for easy returns

Safe shopping

Deferred Payments. Buy now, pay later, if you don't return it

Buy now, pay later - 4 steps

When choosing a payment method, select PayPo. PayPo - buy now, pay later

PayPo will pay your bill in the store.
On the PayPo website, verify your information and enter your social security number.

After receiving your purchase, you decide what suits you and what doesn't. You can return part or all of your order - then the amount payable to PayPo will also be reduced.

Within 30 days of purchase, you pay PayPo for your purchases at no additional cost. If you wish, you spread your payment over installments.

After purchase you will receive pts.

TALARIA MX3 / MX4 / STING R · TORP TC1000 2.X

The controller that takes the Talaria out of its factory straitjacket

Official TORP distributor · pre-configured kit · 2-year warranty

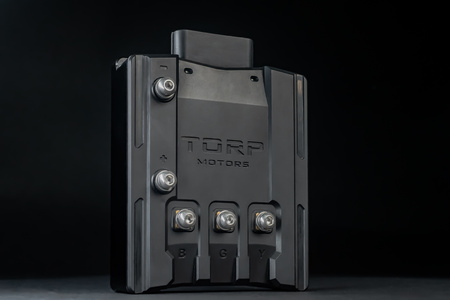

The TORP TC1000 2.X replaces the stock Talaria controller with a full FOC unit rated at 700 A battery / 1000 A phase, pre-calibrated for the MX3, MX4 and Sting R. On the stock battery it takes the bike to 8 kW (MX3) and 11.5 kW (MX4 / Sting R); with an aftermarket 72–80 V pack, up to 20 kW. Everything for the install is in the box and the bike keeps its stock functions — the one exception is the start button, which the kit replaces.

What you get

Pre-configured, no mapping

The map is loaded for the MX3 / MX4 / Sting R. Fit it, pair the app, ride. Fine-tuning is optional.

Up to 20 kW on a Talaria

8 kW on an MX3 and 11.5 kW on an MX4 / Sting R with the stock battery. Move to an aftermarket 72–80 V pack and the same controller gives up to 20 kW.

Tuned from your phone

Bluetooth app for iOS and Android: power maps, throttle response, regen braking, ride modes — changed trailside in seconds.

Keeps the stock display

Works with the factory Talaria display and leaves the bike’s stock functions in place. The start button is the one part the kit replaces.

Complete kit

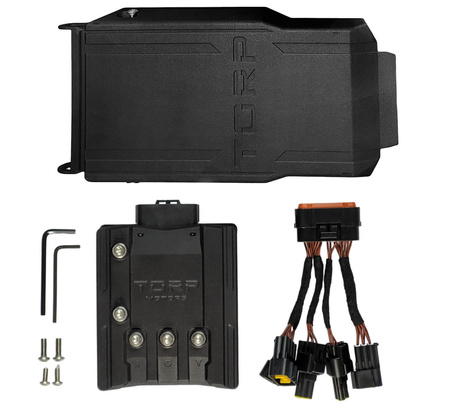

Controller, wire harness, plastic shield, 2 mounting brackets, silicone thermal grease, screws and tools — plus stickers and a quick guide.

Wheelie-control hardware built in

The 2.X board already carries the hardware for TORP stability and wheelie control. TORP switches it on by app update; a TORP display is required.

IP67 and 2-year warranty

Over-current, over-voltage, under-voltage and over-temperature protection, plus regular TORP firmware updates.

Real power, by setup

Talaria MX3, stock battery	8 kW
Talaria MX4 / Sting R, stock battery	11.5 kW
Aftermarket 72–80 V battery	up to 20 kW

Manufacturer figures. The controller hardware is rated at 50 kW, but on a Talaria what reaches the ground is set by your battery and motor — we would rather tell you that before you order than after. One more thing worth knowing: TORP states the controller cannot communicate with the stock Talaria battery made by SCUD. All other functions stay intact.

Specifications

Model	TORP TC1000 2.X
Control	Field-oriented control (FOC), HALL encoder + sensorless
Supported batteries	60 V to 80 V nominal (22S — 92.4 V fully charged)
Max battery current	700 A
Max phase current	1000 A
Max power	50 kW (hardware rating, with a matched motor)
Efficiency	up to 99%
Operating temperature	−15 to 75 °C
Communication	Bluetooth, app for iOS and Android
Display	works with the factory Talaria display
Stock functions	retained — except the start button, which the kit replaces
Protection class	IP67
Weight	1.3 kg
Warranty	2 years (TORP manufacturer warranty)

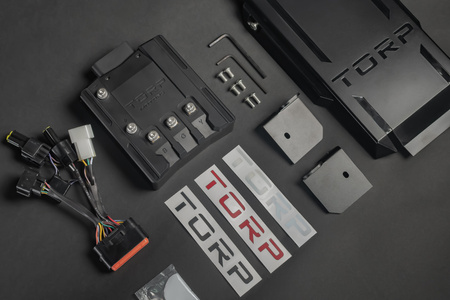

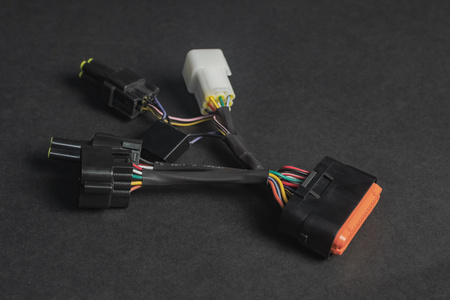

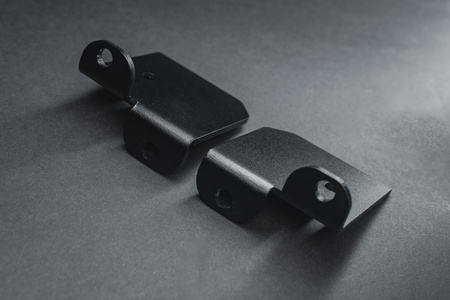

In the box	1× TC1000 2.X controller · 1× wire harness · 1× plastic shield · 2× mounting brackets · 1× silicone thermal grease · screws and tools · 4× stickers · quick guide

Plug ’n’ play fit

Talaria Sting MX3Talaria Sting MX4Talaria Sting R

Riding something else? TC1000 2.X for Talaria MX5 — the MX5 uses a different wiring harness, so it is a separate kit and this version will not fit it. For Sur-Ron: TC1000 2.X for Light Bee, TC1000 2.X for Ultra Bee, TC500 2.X for Light Bee.

Questions riders actually ask

How much power will I actually get?

With the stock battery: 8 kW on an MX3, 11.5 kW on an MX4 or Sting R. With an aftermarket 72–80 V pack: up to 20 kW. The 50 kW on the spec sheet is what the controller hardware can pass, not what a stock Talaria will make.

Will my stock battery work?

TORP states the controller cannot communicate with the stock Talaria battery made by SCUD — all other functions stay intact. For the full 20 kW you need an aftermarket 72–80 V pack.

Does anything on the bike stop working?

No. All stock Talaria functions stay in place; the only part the kit replaces is the start button.

I ride an MX5 — can I use this kit?

No. The MX5 has a different wiring harness, so it needs its own kit. Ordering this version for an MX5 will not fit.

Do I have to program or calibrate anything?

No. The unit ships pre-calibrated for the MX3 / MX4 / Sting R. Fit it, pair the app, ride.

Complete the build

TORP Full-Color displayController and battery data on the bar. The only version that supports 2.X controllers.

96 Power Parts Stem LockConstant preload on the headstock bearings. More power means harder landings — and the stock star nut gives up.

17" Supermoto wheel set – TalariaThe natural next step once the power is there: grip on tarmac.

Official TORP distributor

Genuine kit, complete in one box, fast European delivery. Not sure which controller fits your Talaria? Message us — we ride these bikes ourselves.
