Altis Powersports Sigma, MX, 16/19 , 22,5kW

Altis Powersports Sigma MX – 16/19 Off-Road Wheels

Model Highlights

• Battery: 97.2V / 35Ah (3.402 kWh) Samsung 50S cells – Greenway battery pack

• Charging Time (20%–80%): 2 hours

• Charging Time (20%–100%): 3 hours

• Motor: 22 kW peak, Hairpin motor (automotive-grade)

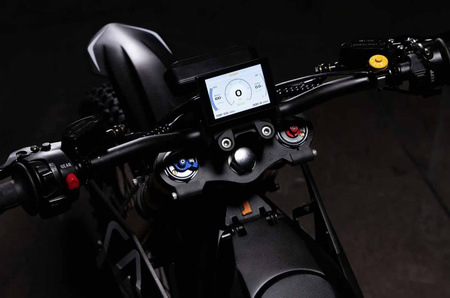

• Display: 3.5" TFT with NFC functionality

• Regenerative Braking: 5 adjustable levels

• Lighting: Headlight and taillight with brake light switch

• Brakes: Heavy-duty disc brakes

• Tires: CST off-road tires

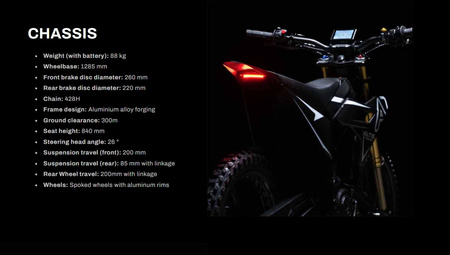

Chassis Specifications

• Weight (with battery): 88 kg

• Wheelbase: 1,285 mm

• Ground Clearance: 300 mm (corrected from 300m)

• Seat Height: 840 mm

• Steering Head Angle: 26°

• Frame: Forged aluminum alloy

• Chain Type: 428H

• Wheels: Spoked wheels with aluminum rims

Brakes

• Front Disc Diameter: 260 mm

• Rear Disc Diameter: 220 mm

Suspension & Travel

• Front Suspension Travel: 200 mm

• Rear Suspension Travel: 85 mm (with linkage)

• Rear Wheel Travel: 200 mm (with linkage)

• Suspension Type: Adjustable off-road air-spring

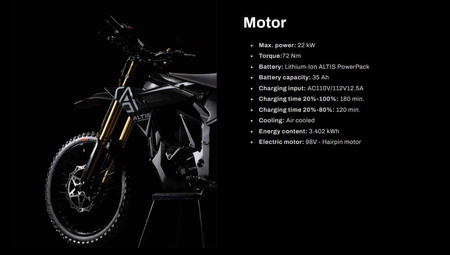

Motor & Power

• Maximum Power: 22 kW

• Torque: 72 Nm

• Electric Motor: 98V Hairpin motor

• Cooling System: Air-cooled

Battery & Charging

• Battery Type: Lithium-Ion (ALTIS PowerPack)

• Capacity: 35 Ah

• Voltage: 97.2V

• Energy Content: 3.402 kWh

• Charging Input: AC 110V / 112V @ 12.5A

• Charging Time (20%–80%): 2 hours

• Charging Time (20%–100%): 3 hours

Available Colors

• Black

• Red / Black
