SWM Binsen EX2 PRO, SuperMoto, 8.5kW, L1E

SWM Binsen EX2 PRO, SuperMoto, 8.5kW, L1E

SWM Motorcycles is a historic motorcycle manufacturer strategically placed in Lombardy, the beating heart of Italian motorcycling, chosen by major companies in the industry for its location adjacent to the Milan area, which plays a driving role in global business. Born as a racing brand, with its entry into the Shineray Group, SWM has left the racing world to look to the future and expand into the international market.

BINSEN is a sub-brand of SWM, focusing on the research and development of electric motorcycles. Meet the SWM Binsen: The Electric Revolution on Two Wheels! An innovative electric motorcycle that blends cutting-edge technology with pure riding thrill, whether you're cruising through city streets or taking on off-road trails.

Key Model Features

This model combines powerful specifications with street-legal homologation, allowing for legal use on public roads.

• Model Name: Designation "SuperMoto" (SM) in the name.

• Power: Equipped with a motor with a rated power of 4.0 kW and a powerful peak power of 8.5 kW.

• L1e Homologation: The vehicle is street-legal in the L1e category (moped). This means that for legal road use, its maximum speed is limited to 45 km/h.

• Full Potential: The full maximum speed of 85 km/h is available for off-road use (e.g., in Sport mode).

• Torque: The impressive peak torque of 400 N·m provides instant acceleration and hill-climbing ability.

Full Technical Specification

Chassis & Dimensions

• LxWxH (mm): 1880 * 845 * 1100

• Min. Ground Clearance (mm): 270

• Wheelbase (mm): 1250

• Seat height (mm): 860

• Curb Weight (kg): 72

• Max. Recommended Load (kg): 100

• Frame: Aluminum Alloy

• Front Tire: 70/100-19 | 80/100-19

• Rear Tire: 70/100-19

• Front Suspension: KKE Trip 200, Damping Adjustable

• Rear Suspension: KKE Trip 200, Damping Adjustable

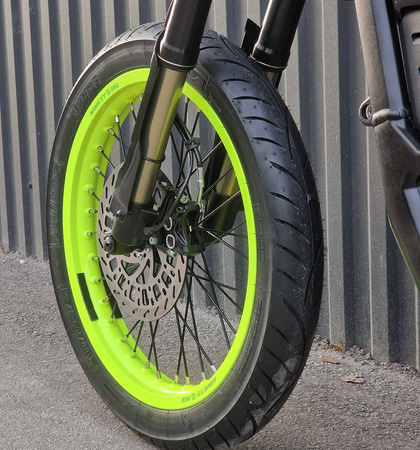

• Brake (Front): 220 mm, 4-piston (4x18)

• Brake (Rear): 220/200 mm, 4-piston (4x18)

• Lights: LED (Headlights, Rear Lights, Brake Lights)

Performance & Features

• Max. Speed (km/h): 85 (Limited to 45 km/h for L1e homologation)

• Range Per Charge: 80 km (@ 40 km/h)

• Max. Climbing Angle: 48°

• TCS (Traction Control System): On/Off

• Power Modes: Eco & Sport

• Brake Power-off System: Sport Mode Can Be Manually Turned Off

• KERS (Energy Recovery): Software 10 Gear / Manual 3 Gear

Power System

• Peak Power (kW): 8.5

• Rated Power (kW): 4.0

• Peak Torque (N·m): 400

• Battery Capacity: 72V 40Ah

• Charging Time (h): 3.5 (Slow Charging) / 2.5 (Fast Charging)

• Power System: PMSM & Reduction Gearbox

• Motor: High speed electric motor (8000r)

• Gear Ratio (Gear & Chain Drive): Primary 3.105 / Final 3.428 (14/48)

• Battery Type: Ternary Lithium Battery (21700)
