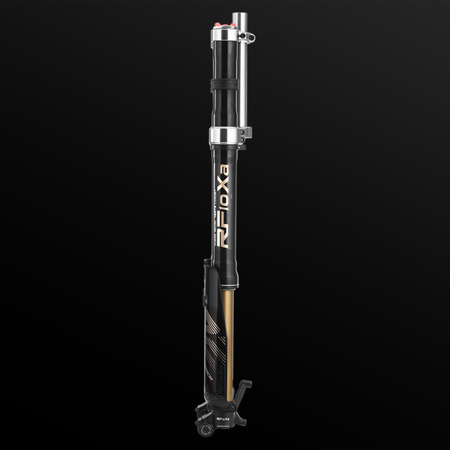

RFLOXA Hawk32 front fork, 203 mm travel, 60 lbs spring – Sur-Ron LBX/LBS/L1E, Talaria MX3/MX4, E-Ride Pro S/SS
- RFLOXA Hawk32 — 37 mm inverted front fork, 203 mm travel, 60 lbs spring. Compression, rebound and preload adjustment. 750 mm axle-to-crown.
Subscription products in your shopping cart
Set one delivery frequency for all subscription products in your cart every:
Subscription products in your shopping cart

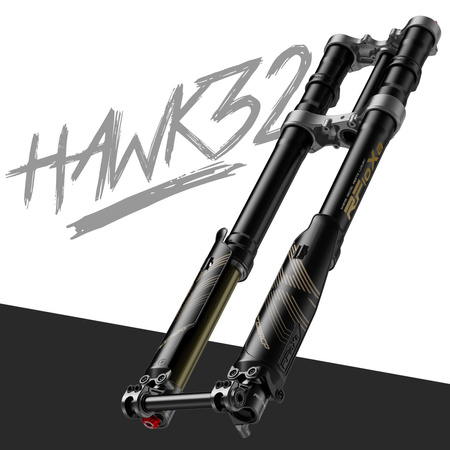

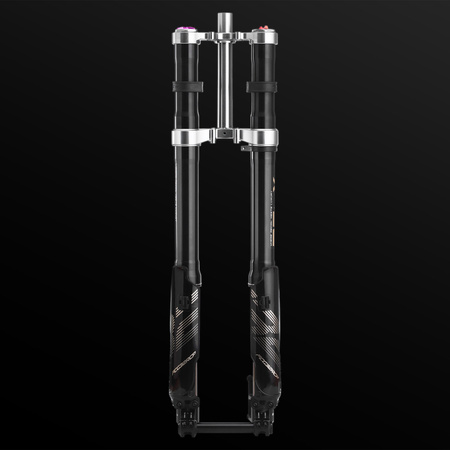

Inverted oil-spring fork on Ø37 mm AL7075-T6 stanchions with forged AL6061-T6 lowers. 203 mm of travel, a 60 lbs spring, and compression, rebound and preload adjusters on the outside — no disassembly needed.
This is the cheapest way into an adjustable inverted fork in our range. It fits Sur-Ron LBX, LBS and L1E, Talaria MX3/MX4, E-Ride Pro S and SS, and 79Bike Falcon. Neither the triple clamp nor the steering bearings are included — read the section below before you order.
Hawk32, Hawk31 PRO or Hawk31 MAX?
| Model | Adjusters | Clamp / geometry | Price |
|---|---|---|---|
| Hawk32 (this one) | Compression · rebound · preload | No triple clamp — you reuse yours | 3,300 PLN |

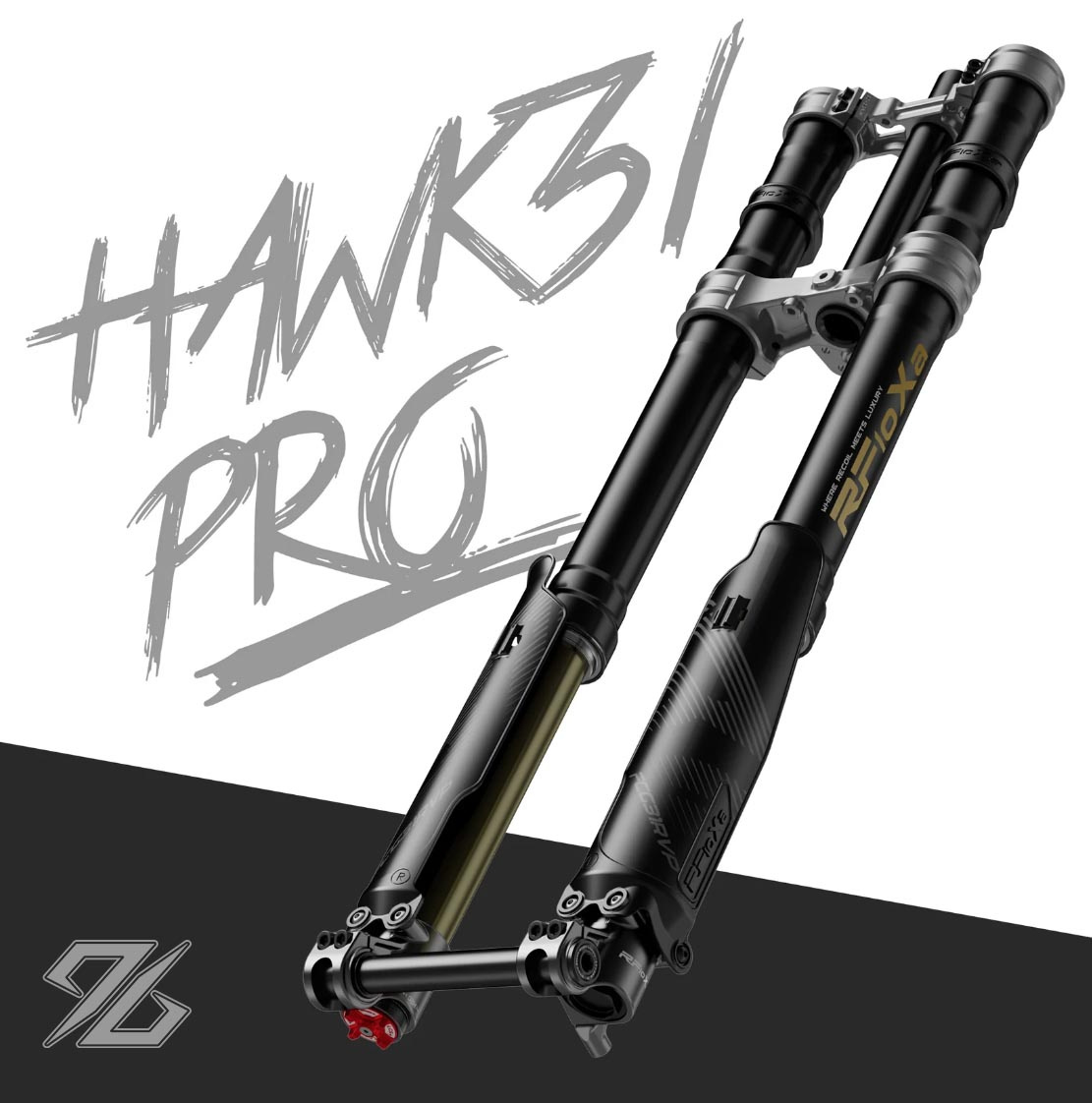

| Hawk31 PRO | + separate high- and low-speed compression | 146 mm clamp | 4,399 PLN |
| Hawk31 MAX | + separate high- and low-speed compression | 162 mm clamp, 17 mm lower top yoke, wider axle | 4,899 PLN |
What you get

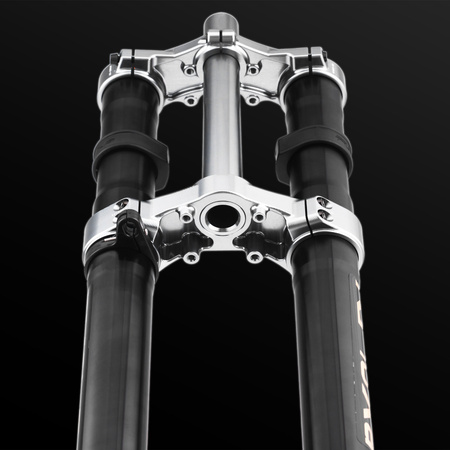

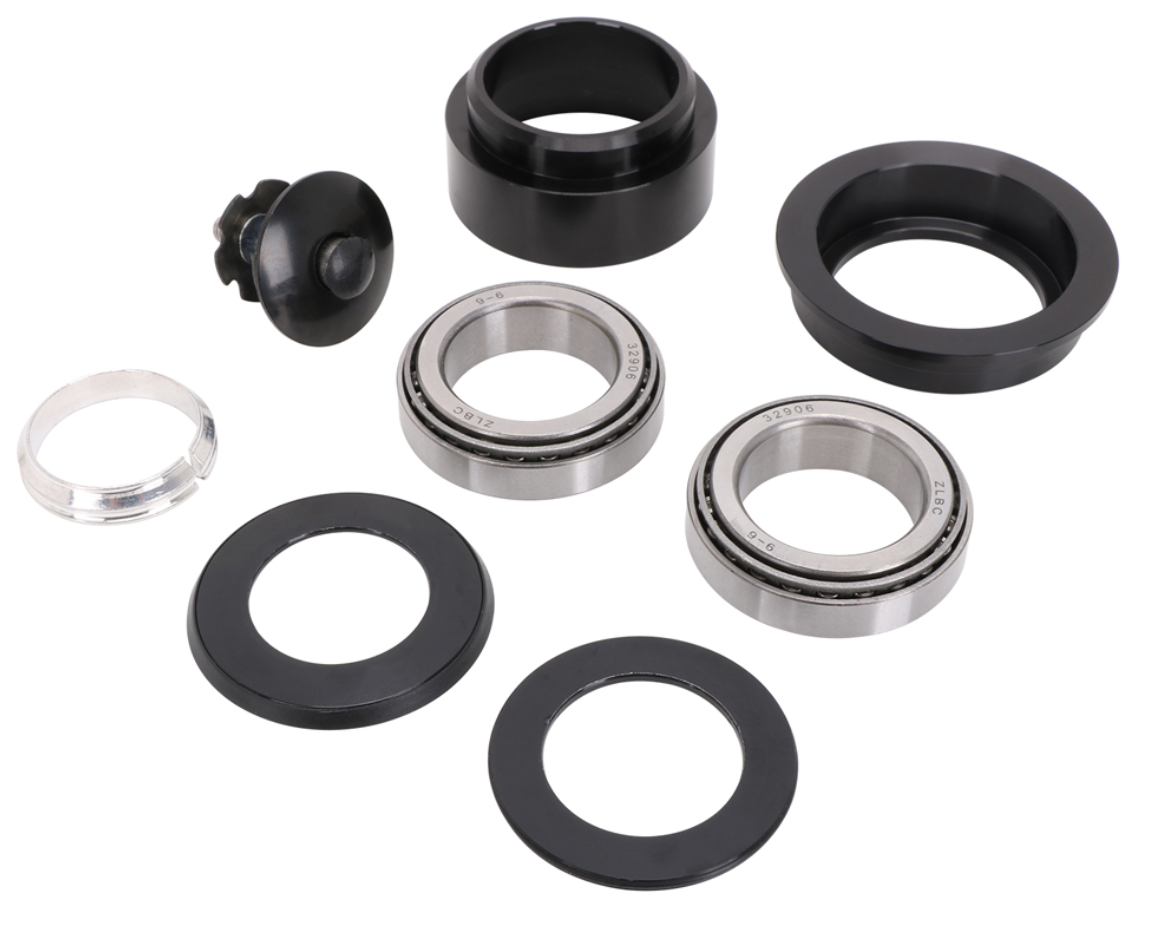

The triple clamp stays yours — RFLOXA sells the fork alone. Bearings are not in there either: the maker states plainly "not include bottom bearing", and there is no top one. For the Sur-Ron Light Bee and LBX we stock the bearing set — see the tile below. Talaria additionally needs a spacer under the lower bearing.

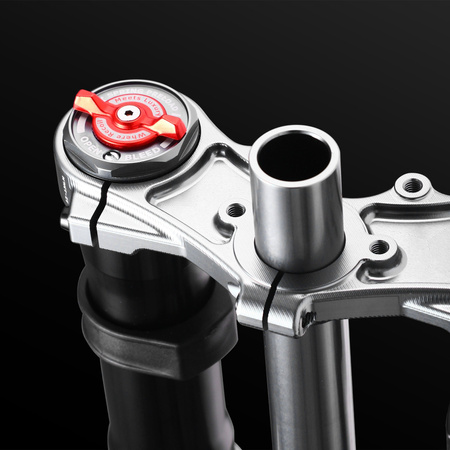

Compression adjuster on top of the leg

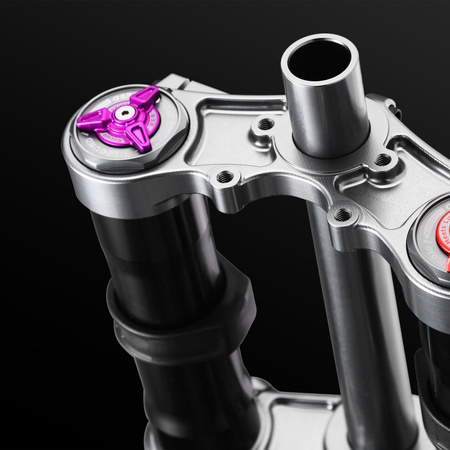

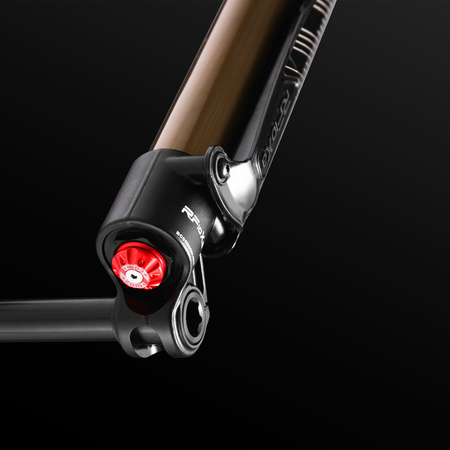

Rebound and preload adjustersSpecification
| Travel | 203 mm (228 mm to order from the maker) |
| Axle to crown | 750 mm (800 mm version to order) |
| Stanchions | Ø37 mm, AL7075-T6 |
| Lower legs | AL6061-T6, forged |
| Spring | 60 lbs, 55CrSi wire |
| Damper | Inverted, oil-spring |
| Adjusters | Compression, rebound, spring preload |

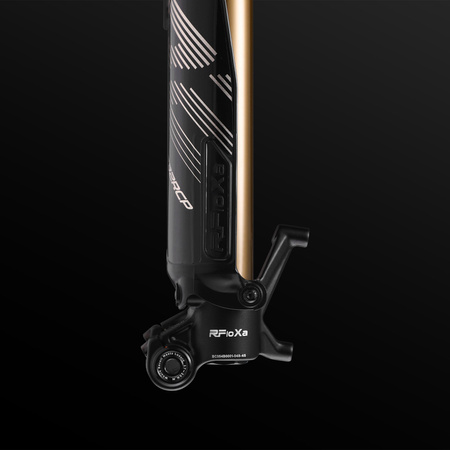

| Brake | 74 mm caliper spacing · Ø203 mm disc (larger needs an adapter) |
| Wheel | 26" |
| Warranty | 12 months RFLOXA + 2-year EU statutory warranty |
| What we do not state | RFLOXA does not publish weight or clamp width — we do not guess |
Which spring?
| Spring | Trail / enduro | Jumps / MX |
|---|---|---|
| 45 lbs | up to approx. 100 kg | up to approx. 85 kg |
| 45–60 lbs progressive | approx. 80–115 kg | approx. 80–110 kg |
| 60 lbs (this version) | approx. 100–130 kg | approx. 85–130 kg |
The manufacturer publishes two different weight ranges for this fork. The table above is ours — it separates trail riding from jumping, because that is what actually decides, not body weight alone.
Before you order
- Steering bearings are not part of the kit — we sell them separately, add them to your cart.
- The triple clamp is not part of the kit — you reuse your own.
- Talaria — a spacer under the lower bearing is required.
- Rawrr Mantis X PRO — the manufacturer excludes this model.
- A disc larger than 203 mm requires an offset adapter.
- The 800 mm version or 228 mm travel is made to order — message us before buying.
Setup in short
- Get the spring rate right first. Preload changes ride height, not stiffness.
- Aim for 25–30 % rider sag — about 51–61 mm here, in full gear, on the bike.
- Count clicks from fully closed; clockwise is firmer, counter-clockwise softer.
- Change one adjuster at a time, two clicks, on the same stretch of trail.
Frequently asked
How is the Hawk32 different from the Hawk31 PRO?
The Hawk32 has a simpler adjuster layout — compression is a single circuit rather than split into high and low speed. Stanchions, travel, spring and materials are the same class. That is the whole price difference.
Do I get steering bearings?
No, the fork maker includes neither the bottom nor the top one. For the Sur-Ron Light Bee and LBX we stock a complete set — see the tile below. On Talaria and E-Ride Pro, transfer your own with a puller.
Will it fit a Rawrr Mantis X PRO?
No. RFLOXA explicitly excludes that model. The regular Mantis and Mantis X are compatible.
How much does it weigh?
RFLOXA does not publish the weight of this fork, and we do not guess.
