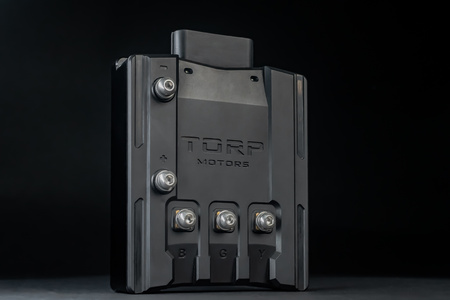

TORP TC 1000 2.X controller Talaria MX3 / MX4 / Sting R

The only aftermarket controller pre-configured for the Talaria MX3 / MX4 ​​/ Sting R. Quick and easy installation and intuitive configuration using the mobile application.

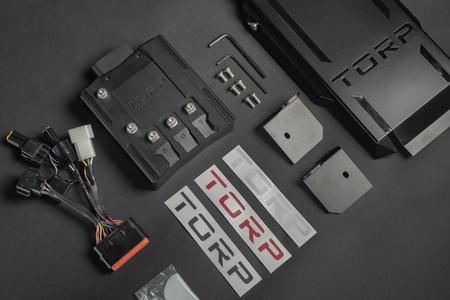

IN THE PACKAGE:
-1x TC1000  controller

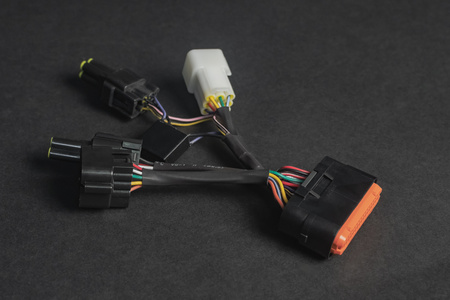

-1x wire harness

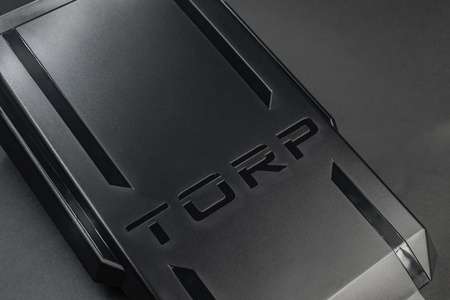

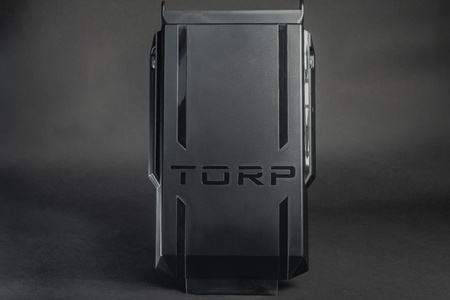

-1x plastic cover
-screws and tools needed for assembly
-4x stickers
-short instructions

SPECIFICATION:

• Field-oriented control (FOC)
• Voltage 20-90V
• Maximum power: 50kW
• Sensor control (HALL encoder) and sensorless control
• Maximum battery current: 700 A
• Maximum phase current: 1000 A
• Efficiency up to 99%
• Operating temperature: -15 to 75°C
• Bluetooth communication
• Pre-calibrated: No additional steps required
• Overcurrent, overvoltage, undervoltage and overtemperature protection
• Communication with the original BMS
• Various regenerative braking and throttle modes
• Weight: 1.3 kg
• Features: mobile app (IOS and Android), factory SurRon display
• Protection class: IP67
• Regular firmware updates

Manufacturer's assembly instructions:
VIDEO
